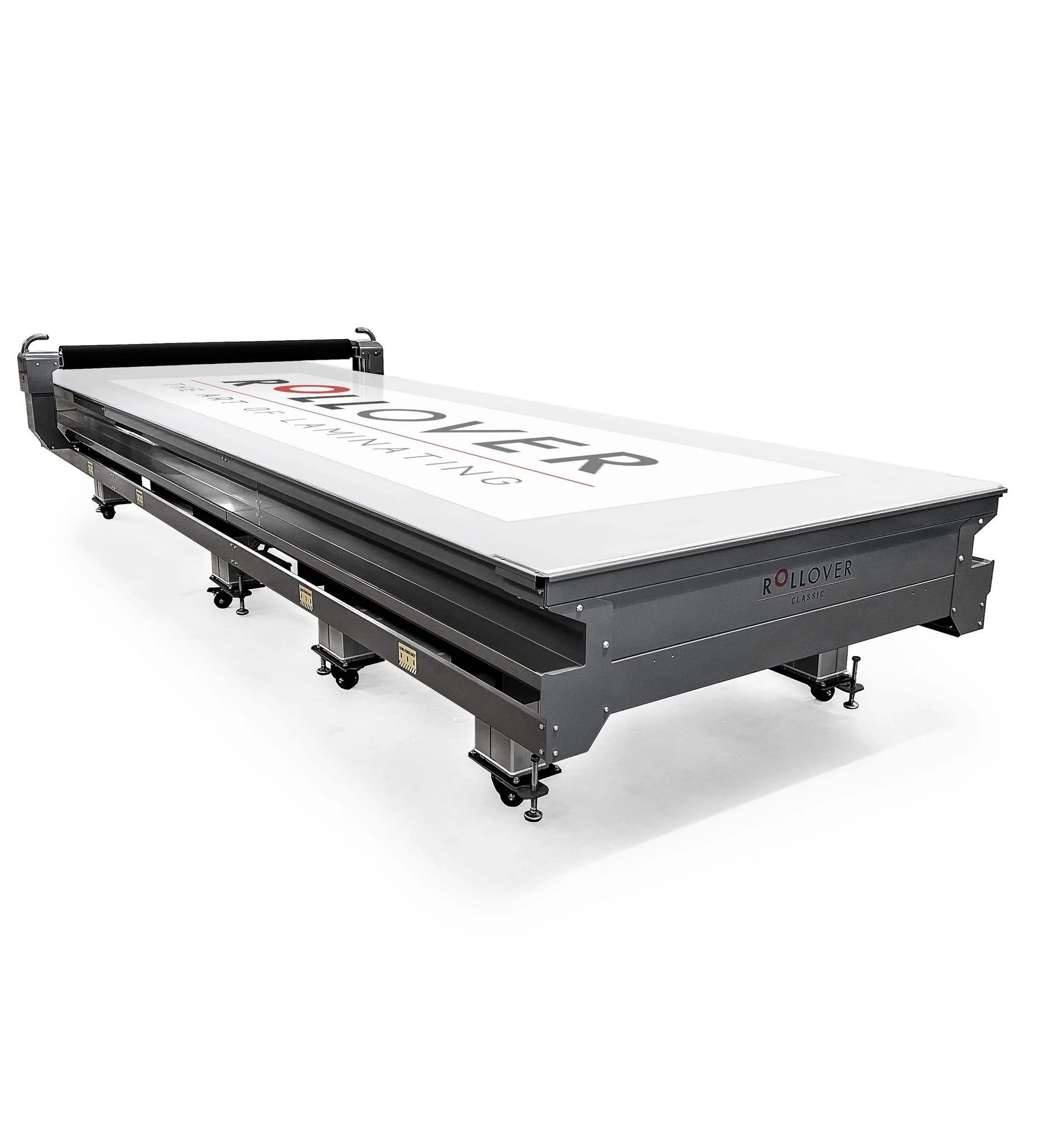

Rollover Classic Application Table

The Flagship Model Within The Rollover Range

The Rollover Classic is the flatbed applicator of choice for sign shops ready to take on larger and more diverse projects. Designed for easy, single-user operation, its robust build and ergonomic features make laminating and applying vinyl or application tape quick and easy. Optional features like heat-assisted rollers and twin rollers help you expand your capabilities even further.

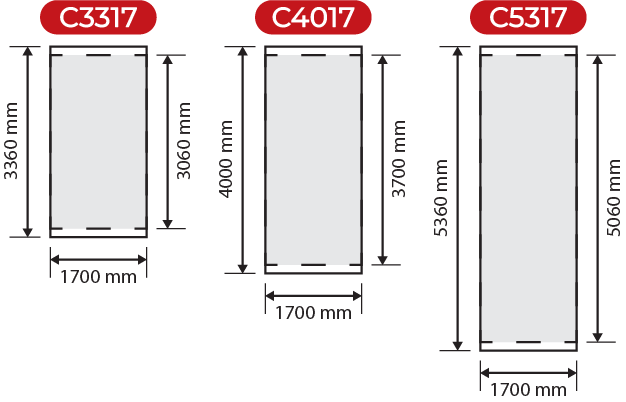

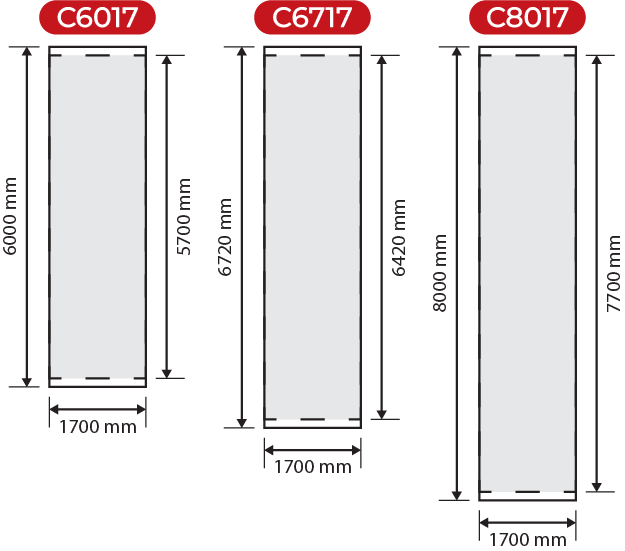

Rollover Classic Bed Sizes

Easy Operation

Easy one-hand operation

By using the ergonomically shaped and inward-facing handles, the roller can be moved easily over the tabletop both in a raised and lowered position.


Height Adjustment

The electronic height adjustment (from 800mm to 1120mm) delivers better ergonomics, reducing back strain and allows for the table to be adjusted for use by workers of any height.

Roller Accessibility

The Rollover's open design, free from a support bar, provides superior accessibility allowing for easy loading and unloading of media and easier operation.

Illuminated (LED) Glass Bed

The 10mm single-piece*  backlit glass top makes it easier to weed intricate designs, precisely lay up signs, and make accurate cuts.

Self Healing Cutting Mat

5mm thick, Phthalate-free, self-healing cutting mat provides a comfortable, stable work surface while protecting your knives and work table.

Solid and Movable

The robust construction and high quality casters provide unmatched stability that allows you to easily relocate the Rollover with NO levelling required*.

Convenient Storage

Tools can be stored in conveniently placed pockets  on each housing as well as provision on either side for storing brackets, roll holders and smaller tools.

Media Handling

Brackets/spindles for handling the media rolls and application tape from both table ends and roller housings.

*C3317 and C4017 only

Standard Features

Reversible extra brackets for application tape
Integrated air pressure gauge
Separate outlet for air gun connection
Unobstructed access to the roller
Side trays for oversize media handling

Optional

Heat assist roller 30°C - 60°C
Extended gap between roller and glass bed (150mm)
Long side cutting guide
Twin rollers

Inclusions

  • 4x Brackets
  • 2x Roll Holders
  • 1x Power Lead
  • 1x Compressor hose 2 meter
  • 1x Compressor Fitting

BONUS Inclusions

  • Long Reach Cutter
  • 1x Sticky Roller
  • 1x Pack Sticky Paper ( 50x)

Impressive Warranty

Get peace of mind with Rollover's 5 years warranty. Our durable, high-quality applicators are built to last, ensuring your investment is protected for years to come.

Specifications

Model C3317 C4017 C5317 C6017 C6717 C8017
Bed working area 3360 x 1700mm 4000 x 1700mm 5360 x 1700mm 6000 x 1700mm 6720 x 1700mm 8000 x 1700mm
Working area of roller (mm) 3060 x 1700mm 3760 x 1550mm 5060 x 1700mm 5700 x 1700mm 6420 x 1700mm 7700 x 1700mm
Roller diameter 130mm 130mm 130mm 130mm 130mm 130mm
Approx. weight 530kg 650kg 845kg 1010kg 990kg 1230kg
LED illumination 175W 210W 290W 325W 350W 420W
Steel edge outside glass bed Add 30mm on each side Add 30mm on each side Add 30mm on each side Add 30mm on each side Add 30mm on each side Add 30mm on each side
Max. substrate thickness 87mm 87mm 87mm 87mm 87mm 87mm
Bed work height 900mm 900mm 900mm 900mm 900mm 900mm
Bed work height ETHA 800 to 1120mm 800 to 1120mm 800 to 1120mm 800 to 1120mm 800 to 1120mm 800 to 1120mm
Power supply 10Amp 230V/50Hz/24V 10Amp 230V/50Hz/24V 10Amp 230V/50Hz/24V 10Amp 230V/50Hz/24V 10Amp 230V/50Hz/24V 10Amp 230V/50Hz/24V
Glass bed Single piece Single piece Two pieces Two pieces Two pieces Two pieces
Table Single module Single module Two modules Two modules Two modules Two modules
