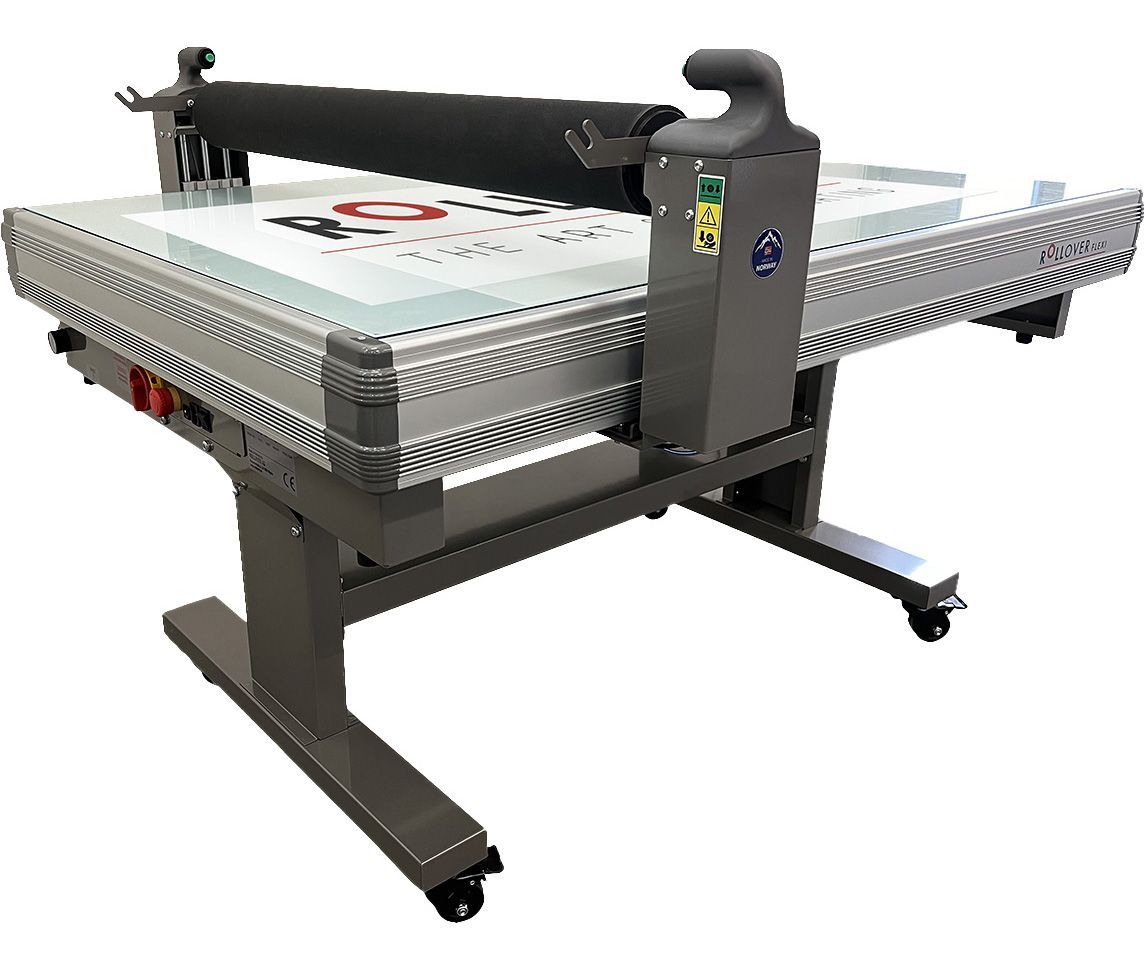

Our new, smaller Flexi-Model, designed to fulfill the needs of customers not primarily working with Wide-Formats, shops with limited floor space or for current Rollover users as second unit. The quality and production result is at the same high level as the existing Rollover Range.
| Key Features | |
|---|---|
| Inward facing and protected activation switch – simplifies and safeguards the applications | Standard |
| Ergonomic handles enable one-hand roller operation for better efficiency and ergonomy | Standard |
| Rounded housings – no sharp edges | Standard |
| Free view to roller – no blocking tower or gantry | Standard |
| Unobstructed access to the roller, media and the work surface | Standard |
| Extended gap between roller and glass bed | Standard |
| Self-healing cutting mat | Standard |
| Illuminated glass bed(LED) | Standard |
| Castors | Standard |
| Integrated air pressure gauge | Standard |
| Separate outlet for air gun connection | Optional |
| Longside Cutter Guide – makes straight cutting of Media and Substrates much easier. | Optional |
Keydata in Millimeters
Key Data
Steel edge outside glassbed Add 30 mm on each side
Max.thickness of sign substrate in cm 5 cm
Gap between steel edge and console* 75 mm
Work height glass bed 900 mm
Power supply 230v/50Hz – 120V/60Hz
* Available space for large formats placed in the side trays.

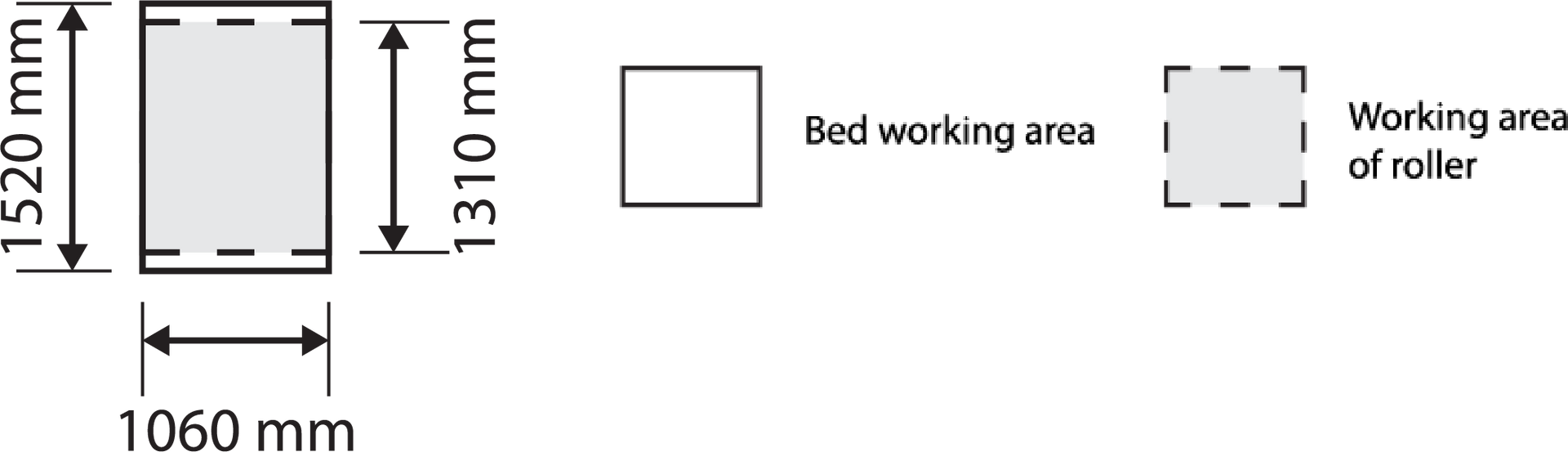

Model size in millemeters
Glass bed working area in cm 1520 x 1060
Working area of roller in cm 1310 x 1060
Approx. weight in kg 165 kg
Illumination, LED 45 watt.
Key data in Centimeters
Key Data
Steel edge outside glassbed Add 3 cm on each side
Max.thickness of sign substrate in cm 5 cm
Gap between steel edge and console* 7.5 cm
Work height glass bed 90 cm
Power supply 230v/50Hz – 120V/60Hz
* Available space for large formats placed in the side trays.
Model size in cm
Glass bed working area in cm 152 x 106
Working area of roller in cm 131 x 106
Approx. weight in kg 165 kg
Illumination, LED 45 watt.
Need more information please call us 1300 499 023 or email: info@rolloveraustralia.com.au
