Rollover Traffic Application Table
Your Solution for High-Volume Road Sign Production

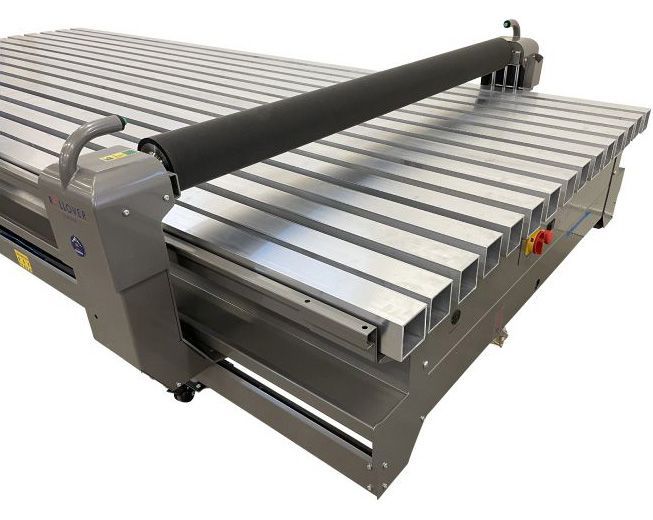

The Rollover Classic Traffic is an innovative and highly efficient system designed to streamline the production of road signs. Its unique design features a special bed of 14 aluminium rails that can be manually adjusted to fit nearly any extruded guide sign panel, ensuring a fully supported panel and professional finish every time. The pneumatically controlled roller can be adjusted for substrates up to 90mm thick, providing versatility for various materials.
This system is commonly used in conjunction with blind riveting systems, making it a comprehensive solution for your road sign production needs.
Easy Operation
Easily operate the roller with one hand, whether it is in the raised or lowered position, thanks to its ergonomically designed, inward-facing handles.
Adjustable Aluminium Rails
14 x 80mm x 80mm fully adjustable aluminium rails slide together manually, to fit nearly any extruded guide sign panel.
Roller Accessibility
The Rollover's open design, free from a support bar, provides superior accessibility allowing for easy loading and unloading of media and easier operation.
Height Adjustment
The electronic height adjustment (from 800mm to 1120mm) delivers better ergonomics, reducing back strain and allows for the table to be adjusted for use by workers of any height.
media and application tape. Also
found at the roller housings.
of oversize media across
the table top.
Standard Features
| Bracket for handling media rolls and application tape |
|---|
| Integrated air pressure gauge |
| Unobstructed access to the roller |
Inclusions
- 4x Brackets
- 2x Roll Holders
- 1x Power Lead
- 1x Compressor hose 2 meter
- 1x Compressor Fitting
BONUS Inclusions
- Long Reach Cutter
- 1x Sticky Roller
- 1x Pack Sticky Paper ( 50x)
Impressive Warranty
Get peace of mind with Rollover's 5 years warranty. Our durable, high-quality applicators are built to last, ensuring your investment is protected for years to come.
Specifications
| Model | T4017 |
|---|---|
| Bed size | 4000 x 1700mm |
| Roller working area | 3700 x 1700mm |
| Roller diameter | 130mm |
| Roller length | 1700mm |
| Aluminium Rails | 80mm x 80mm x 14 |
| Electronic Height Adjustment | 800mm - 1120mm |
| Approx. weight | 850kg |
*Also available in 3360mm - 5360mm - 6000mm - table lengths.
Rollover Traffic FAQs
What makes the Traffic model suitable for traffic signage?
The Traffic model has been purpose-built for the production of road signs with features specifically designed to handle the unique requirements of the traffic signage industry.
Its standout feature is the adjustable bed of aluminium rails, which can be configured to support virtually any extruded guide sign panel profile. This allows reflective sheeting and graphics to be applied accurately across the face of the sign while properly supporting the panel structure underneath. For manufacturers producing a variety of sign sizes and profiles, this flexibility can significantly simplify setup and production.
Combined with the precision roller system and large working area, the Traffic model makes it easier to apply reflective films smoothly and consistently to directional signs, regulatory signs and other traffic control signage. The result is a more efficient workflow and a professional finish on even the most demanding traffic sign applications.
